Model No. |
QL-DL-HP-R6-XX-YY-R |
|
Input Voltage |
120-220V/AC |
|
Frequency |
50/60Hz |
|
Power |
15W |
|
Power Factor |
PF>0.92 |
|
THD | THD＜20%
|
|
Certificates |
CE, ROHS,TUV, ETL |
|
Cover Material |
Acrylic |
|
Beam Angle |
90° |
|
COB Brand |
Epistar/SAMSUNG |
|
Driver Brand |
DML1210-0350 |
| Luminous Flux
|
1425LM |
|
Color Temperature |
2900K-3200K, 4000K-4500K, 6000K-6500K |
|
Color Render Index |
Ra>82 |
|
Housing Material |
Die casting aluminum |
|

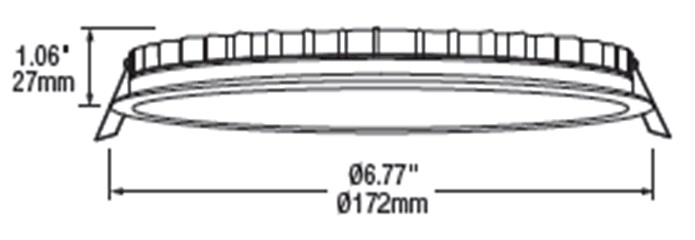

Size |
φ183×27mm, cut hole 160mm |
|
Adjustable |
Yes |
|

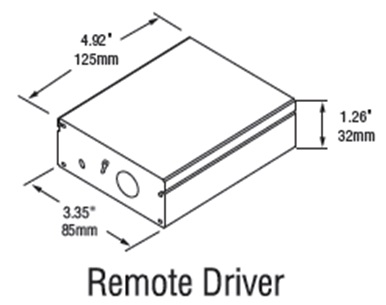

External Driver |
Yes |
|
Ceiling Thickness |
3-20mm |
|
Installation Type |
Ceiling Recessed Type |
|
Application |
Interior(IP44) |
|
Ambient Humidity | 10%～90%R.H.
|
|
Ambient Temperature | -20℃～+45℃
|
|
Storage Tempertature | -20℃～50℃
|
|
Working Temperature | <60℃ (Ta=25℃) |
|
Lifespan |
>40000Hrs |
|
Warranty |
3 years |
Driver Brand Available
Triac,0/1-10V,DALI dimmable driver for options
Driver Brand Available
Triac,0/1-10V,DALI dimmable driver for options
