产品名称：

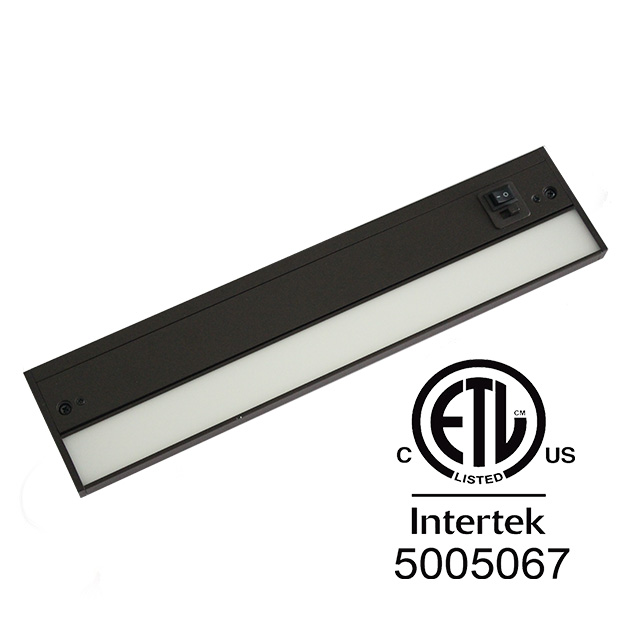

LED 3-Complete Undercabinet Light
Date： 2017-11-03

Model No.: QL-3LC-XX-WH/DB

Power: 6W / 12W / 14W / 16W

Input voltage: 120V AC, 60Hz

Lumen flux: 350LM / 891LM / 922LM / 951LM

Color temperature: 2400K, 3000K or 4000K

CRI: 90+

Beam angle: 106°

Dimensions: 3-5/8” W x 15/16” H x Length

Rated life: 35,000 hrs

Features
1.Dimmable with most standard 2-wire and CL dimmers with 5-100% light output (minimum loads will apply)
2.Micro switch on housing can be set to 2400K, 3000K or 4000K CCT (correlated color temperature)
3.High CRI (90+) for all CCTs
4.Low profle housing hides easily – less than 1” high
5.SMD 5630 LEDs offer long 35,000 hours rated life


Specifications

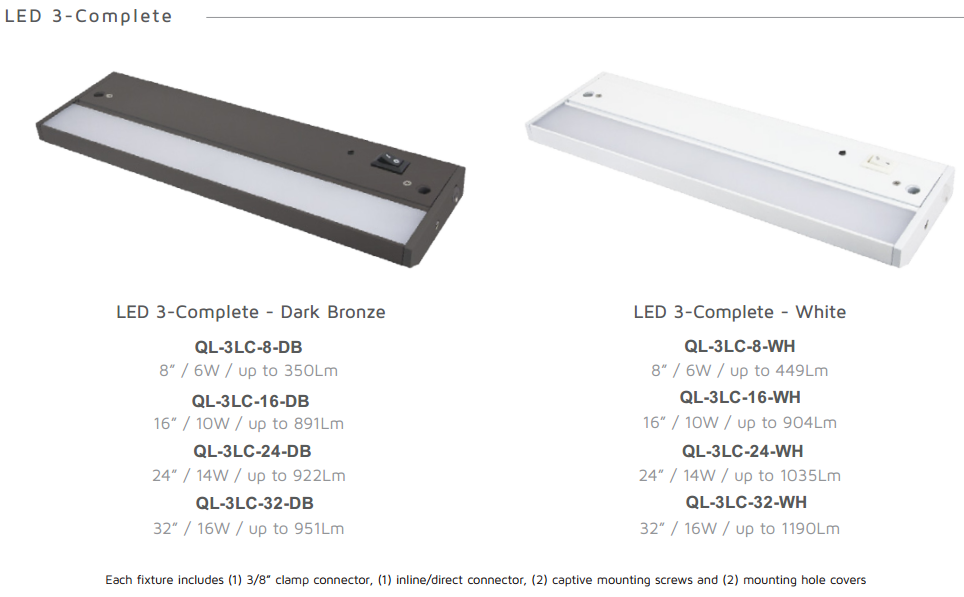

Series: QL-3LC-XX-WH/DB
Input voltage: 120V AC, 60Hz
Color temperature: 2400K, 3000K or 4000K
CRI: 90+
Wattage: 6W / 12W / 14W / 16W
Beam angle: 106°
Dimming: CELV dimmers

Housing: White / Dark Bronze Finish

Lens: Full length extruded acrylic

Rating: cETLus Listed, dry locations
Dimensions: 3-5/8” W x 15/16” H x Length

Rated life: 35,000 hrs
