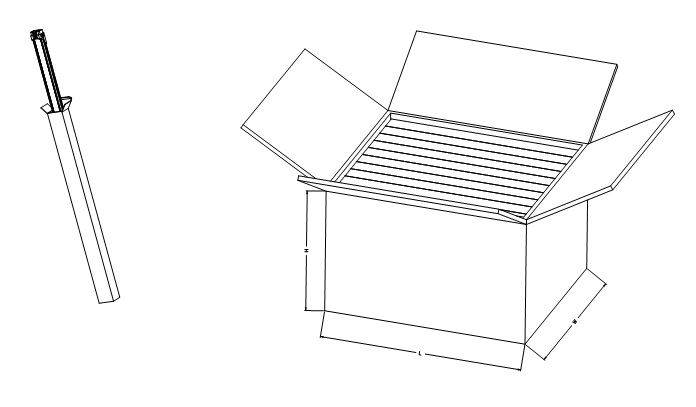

| Rated power | LV-HS-PD20-24V-30 4Watt |
| LV-HS-PD20-24V-50 7Watt |
| LV-HS-PD20-24V-100 13Watt |
| LV-HS-PD20-24V-120 16Watt |
| Power Consumption | ±0.5W |
| Input voltage | DC24V or DC12V |
| LED quantity | 36PCS 60PCS 132PCS 156PCS |
| LED source | Epistar |
| Lamp casing | Milky/PC |
| LED Luminous Efficiency | 80-90lm/W |
| LED Luminous Flux | 320lm 720lm 960lm 1440lm |
| Luminaire Efficiency | >85% |
| Illumination Uniformity | >0.8 |
| Correlated Color Temperature | 2700K-7000K |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120º |
| Degree of Protection | IP40 |
| Item | Inner box | Outer box |
| Quantity | box/1 | box/100 |
| Size | L25x W20 x H1470 | L1530 x W290 x H300 |
| N.W | 0.37kg | 37kg |
| G.W | 0.41kg | 42kg |
Installation Instructions
1.Open the lamp box,remove the lamp to check is there any collision or other injuries, if any damage,please contact manufacture immediately.
2. The main diagram as follows:
Description:1.Emitting Area 2.Main body 3.Connector
1.Fixed lamp body as diagram:(note:two kinds of bracket Optional,the user can select accoeding to demand)
2.Connectionas diagram:(note:our Standrad length of configuration connecting wire is 300mm,alterable based on usage)
Note:Bar light11.Connector 12.DC male-female wireConnected the power cord with DC male-female wire
Connection directly between both ends of bar light can use connector if need intervals installation(note:please inform measurements if need intervals installa)
Note:16 connection line/connector
Note:connection in series can be up to 120w(Max) for our standard configuration adapter more than 120w,need to increase
power based on the usage total power.
