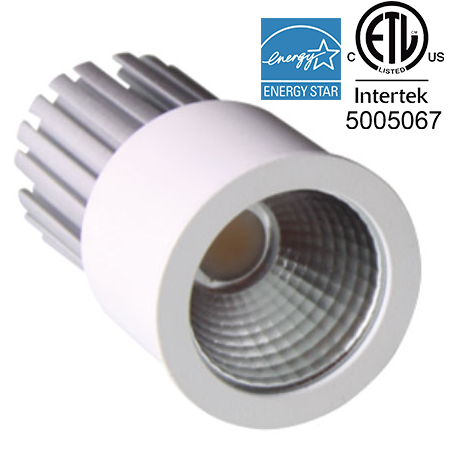

Item No. LVDL201 LVDL202 LVDL203 LVDL204 LVDL205 LVDL206 LVDL207 Dimensions (mm) Ø80*88 Ø84*88 Ø109*113 109*109*113 Ø103*82 Ø87*97 Ø87*97 Cut Holing (mm) Ø74 Ø74 Ø90 Ø90 Ø85 Ø80 Ø80 Input Voltage(V) 25-32V Input Current(A) 0.3A Power(W) 8.2W Lumen(lm) 3000K 580lm IIlumination(lx) 1M 2M 3M 578lx 144lx 64lx CCT(K) 3000-3500K 4000-4500k Beam Angle(Deg) 25/45 Deg CRI 82 Dimmable Yes Features: 1. Light source: Highly bright COB LEDs 2. Material: Aluminum reflector with multiple reflecting function can be used to from complete set of various housing 3. Power supply: The external constant current driver 4. CCT: Pure white and warm white are available 5. Lifespan: 30,000 hours 6. Warranty: 3 years

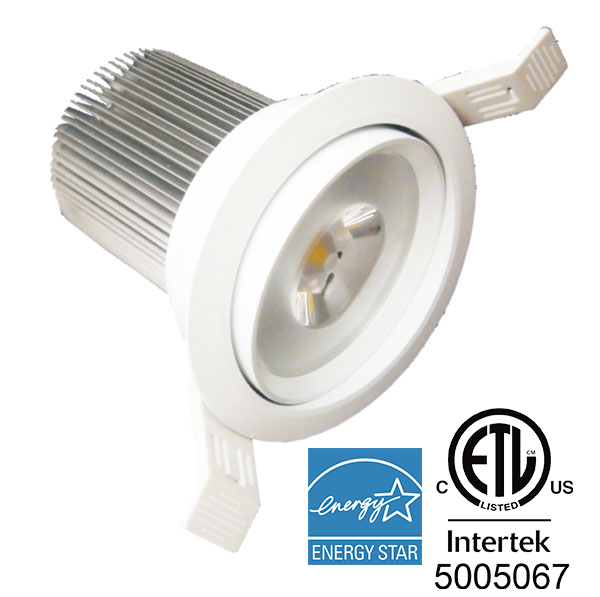

Item No LV-DL-13W-30-NW LV-DL -13W-30-WW LV-DL -13W-60-NW LV-DL -13W-60-WW Voltage(V) AC120Vor AC220V Current(mA) 13WCOB LED TotalLumens (lm) 850lm 1000lm 850lm 1000lm CCT (K) 3000-3500K 4000-5000K 3000-3500K 4000-5000K CRI 83 IPRate IP20 Operation Temperature(Deg) -20°-65° Dimmable Yes
Item No LV1105.1/ LV1105.2/ LV1105.3 Power Consumption 5W Total Lumens 400lm Input Voltage AC100-240V Output Voltage 10V Current 500mA LED module(COB) Sharp CRI 85 Power Factor 0.95 Dimensions (mm) Ø 50 x H52mm Beam Angle 20°/ 36°/ 50° CCT 3000K / 4000K / 5000K IP Rate IP20 Materials Aluminum alloy Life span 50000 hrs Applications: 1. Replacement fortraditional recessed lights 2. Ceiling light 3. Shopping center 4. Walkway 5. Hotel 6. Restaurant 7. Entertainmentplaces 8. Display case 9. Museum 10. Household
Item NoLV1107.1/ LV1107.2/ LV1107.3 Power Consumption 7W Total Lumens 500lm Input Voltage AC100-240V Output Voltage 13V Current 500mA LED module(COB) Sharp CRI 85 Power Factor 0.95 Dimensions (mm) Ø 50 x H72mm Beam Angle 20°/ 36°/ 50° CCT 3000K / 4000K / 5000K IP Rate IP20 Materials Aluminum alloy Life span 50000 hrs Applications: 1. Replacement fortraditional recessed lights 2. Ceiling light 3. Shopping center 4. Walkway 5. Hotel 6. Restaurant 7. Entertainment places 8. Display case 9. Museum 10. Household
Item No V1109.1/ LV1109.2/ LV1109.3 Power Consumption 9W Total Lumens 700lm Input Voltage AC100-240V Output Voltage 37V Current 240mA LED module(COB) Sharp CRI 85 Power Factor 0.95 Dimensions (mm) Ø 50 x H72mm Beam Angle 20°/ 36°/ 50° CCT 3000K / 4000K / 5000K IP Rate IP20 Materials Aluminum alloy Life span 50000 hrs Applications: 1. Replacement fortraditional recessed lights 2. Ceiling light 3. Shopping center 4. Walkway 5. Hotel 6. Restaurant 7. Entertainmentplaces 8. Display case 9. Museum 10. Household
Item No LV-DL-11W-24 LV-DL-11W-60 Power Consumption 11W Input Voltage AC120V or DC120V Current(mA) 320mA CRI 82 Power Factor 0.95 Dimensions (mm) Ø 140 x H76mm Beam Angle 24° 60° CCT WW NW CW WW NW CW Total Lumens 560lm 610lm 640lm 560lm 610lm 640lm Maximum Intensity(cd) 2979 3247 3405 704 775 813 IP Rate IP20 Materials Aluminum alloy Life span 40000 hrs Dimmable YES Applications: 1. Landscape Accent/SpotLighting 2. Display Case Accent 3. Artwork Lighting 4. Architectural Lighting 5. Amusement Park Accent 6. Mood Lighting
